We are happy to have supplied Thailand’s Interior Ministry our Quick windlass & thruster for their 23m fire-fighting (FiFi) boat.
Owner: Phuket Provincial Administrative Organization, Department of Disaster Prevention & Mitigation. Interior Ministry of Thailand.
Shipyard: Marlin Thai Fabrication
Boat type: Fire-fighting (FiFi) vessel
LOA: 23m
The boat was launched at Phuket Fishing Port, near Asia Marina at Tambon (sub-district) Ratsada.
Equipments supplied:

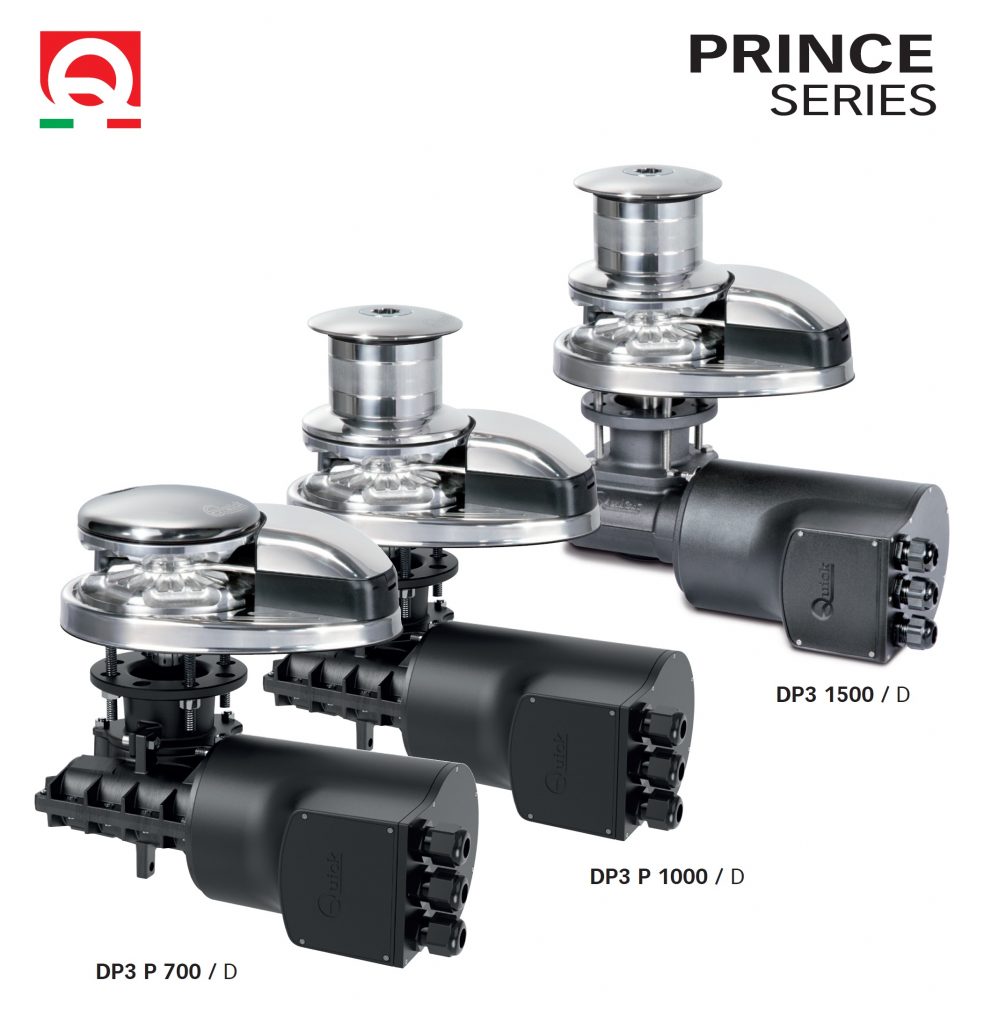

Quick DP3 P Prince vertical windlass
Base in stainless steel AISI 316 & anodized aluminium in hard oxide
IP67 water-tight motor
Anodized aluminium gearbox (1500W)
Technopolymer gearbox (700W/1000W)
c/w gypsy, contactor units, windlass handle & drum

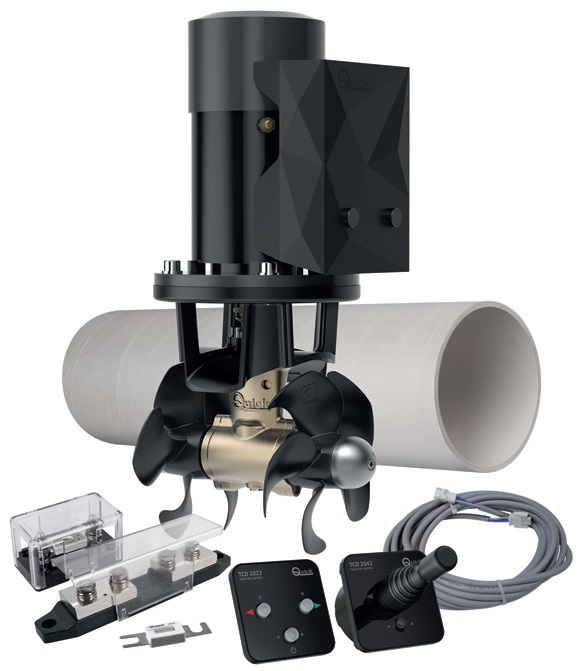

Quick BTQ 250-240 bow thruster
10kW, 24Vdc motor, 240kgF of thrust
Tunnel diameter: Ø250mm
Double counter-rotating propeller
5 blades, black, technopolymer propeller

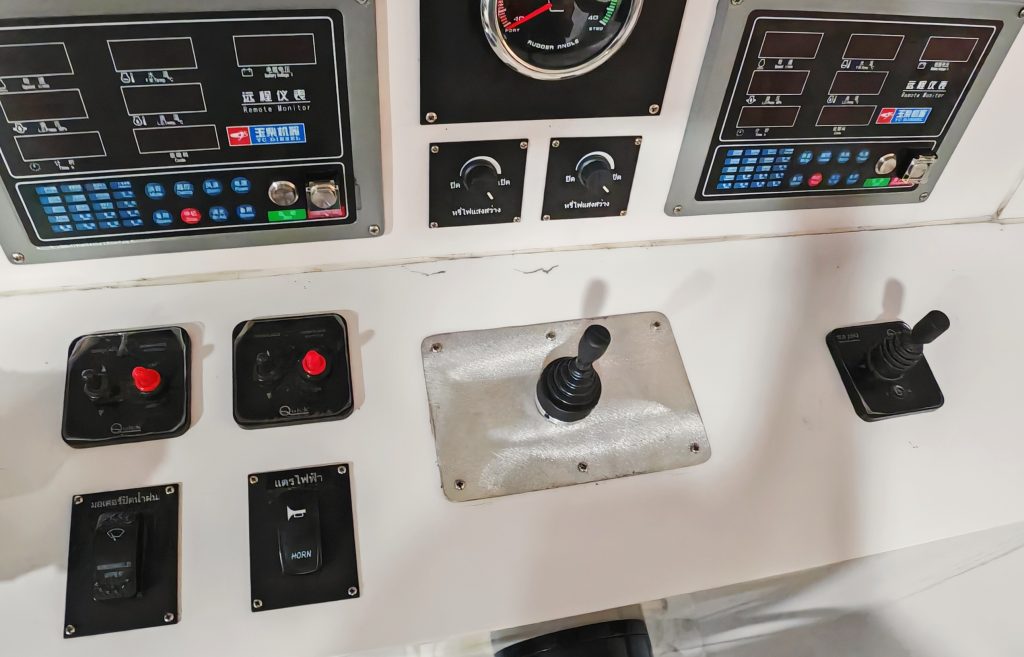

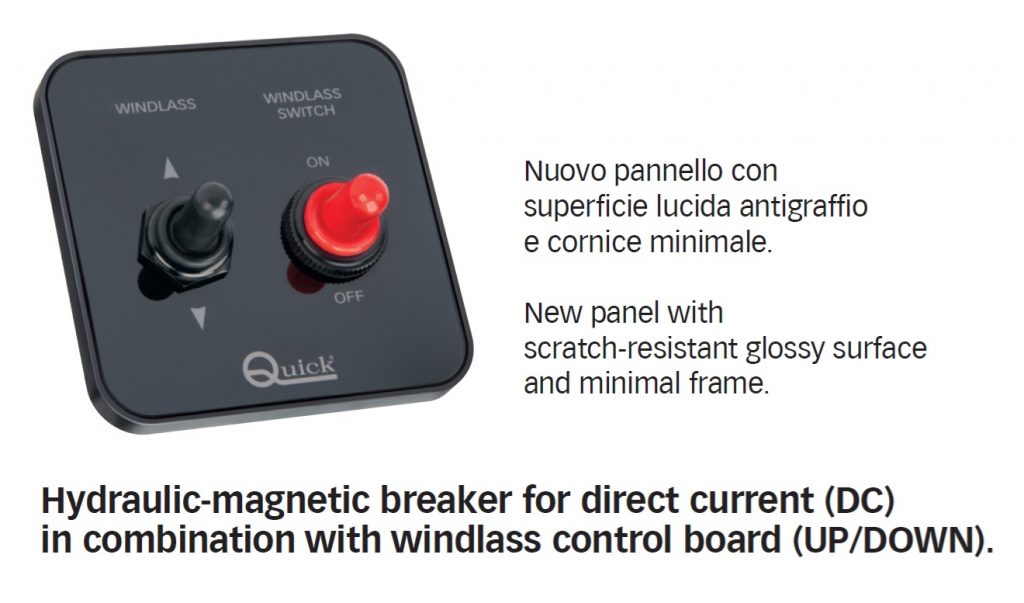

Quick windlass control panel WCS B
Toggle switch board for up/down and on/off function

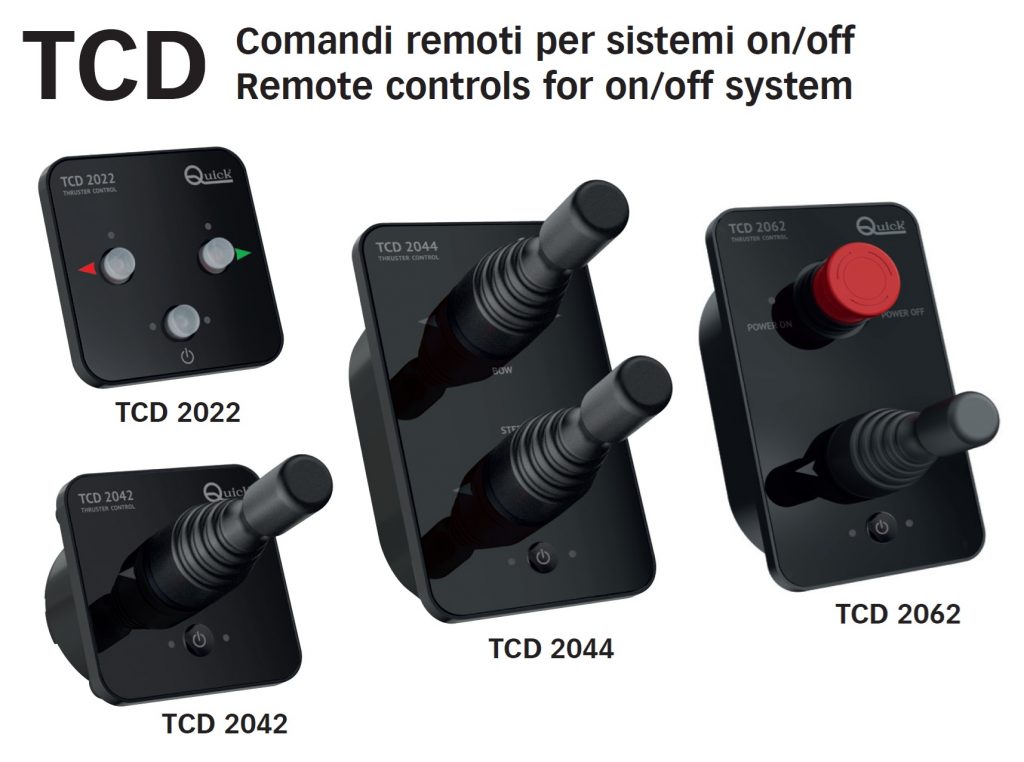

Quick thruster joystick control panel TCD2042
IP66 watertight – suitable for outdoor bridge installation
Protection against reverse polarity, output short circuit, prolonged
activity of thrusters and interruption of thrusters controls wiring.
EMC class: EN60495 – FCC Title 47 Part 15 Subpart B Class B
Ending this post with another beautiful shot of this 23m FiFi boat.
